Z Wave Appliance Micro Module by Fibaro 'B' Grade

  • Image 1
Free Shipping (UK Only)

This is 'B' Grade product as item has been returned as purchased in error. Box not sealed

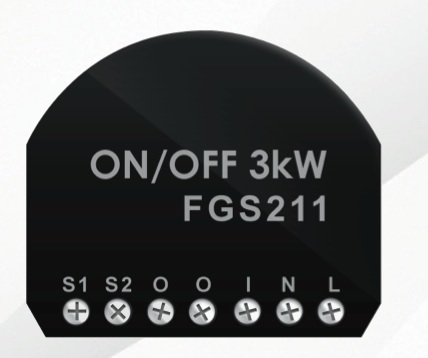

The Z-Wave Appliance Micro Module by Fibaro is designed to be placed into a pattress box behind a normal switch and is capable of switching loads up to 3Kw. This switch is no longer controlling the electrical load directly but acts as input device for the micro module. It has an internal relay to control the electrical load attached. With this micro module an existing installation can be turned into a Z-Wave enabled smart system keeping the original switches in place. This is particularly useful if you are using switches of a particular pattern and don't what to change them.

However you do need a deep pattress box to accommodate the insert and the traditional switch.  The insert is 15 mm wide so this is the minimum extra depth required behind the switch to install the product.


NOTE: This module requires a neutral feed into the switch.

Technical Specification

  • Power Supply:  110 - 230 V AC ±10% 50/60Hz or 24-60V DC ±10%
  • Rated load current for AC output: 16A / 230V 50/60Hz
  • Rated load current for DC output: 16A / 30V
  • Max. Power load 3 KW as resistive load ( in case of loads other than resistive it may be necessary to connect lower output in order to protect the Switch from damage)
  • Conforms to UE requlations: EN55022 (radio wave interference), EN61000-6 (safety of use),
  • Overheating protection: safety off at 105 °C,
  • Operational temperature: 0 - 40 °C
  • To be mounted in standard wall switch boxes fi ≥50mm,
  • Radio protocol: Z-Wave,
  • Radio Frequency 868 MHz,
  • Range: up to 50 m outdoors or up to 30 m indoors (depending on building materials)
  • Outside dimensions (L x W x H) 42mm x 36mm x 15mm.
  • Electricity consumption: < 0,25W

Product Instructions

A copy of the product instructions can be downloaded here.

Warranty Information

2 Years Manufactures warranty
